Projects

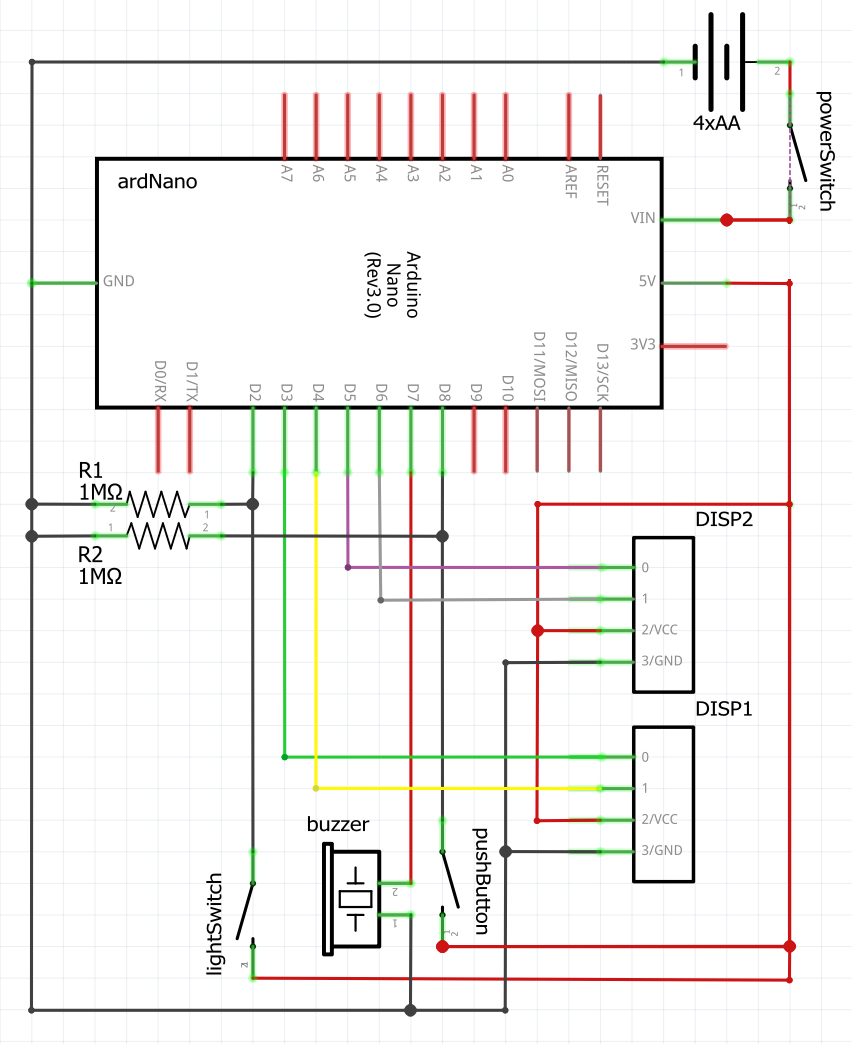

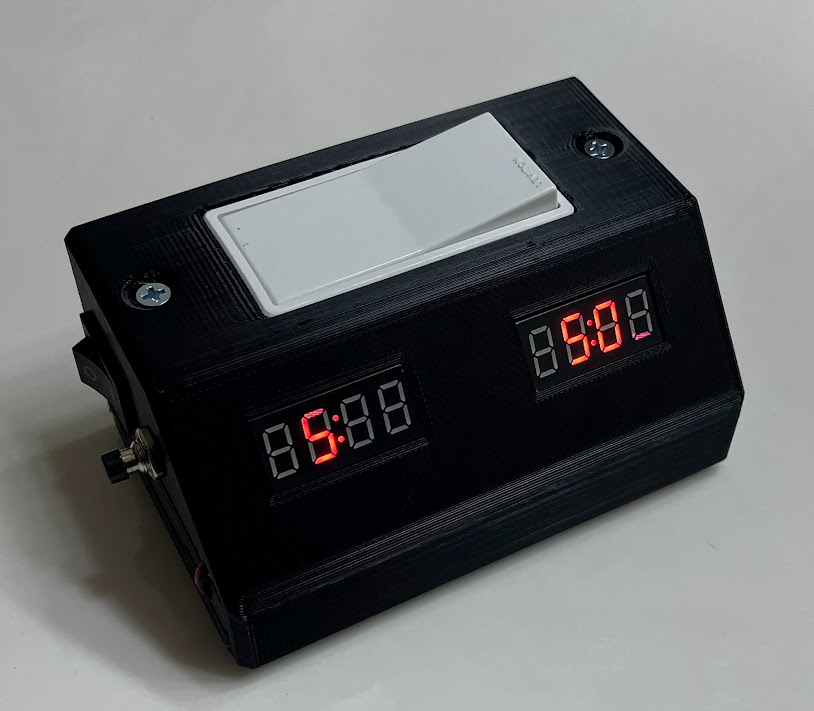

I've wanted to create projects that incorporate 3D printing, electronic hardware, and arduino coding for quite some time. This project is my second that does so. I created all of this myself and enjoyed it a lot. The timer can pause, cycle match time lengths, beep, and reset. Electronics incluse arduino nano, a push button, light switch, two 4x8 segment displays, and a 4xAA battery pack. It took quite a few iterations to nail the case. Securing the displays was the largest obstacle and in the end I settled for hot glue. (Right click and open photos in a new tab to see better.) The first project of this nature I made was an LED desk setup. I created a simple dimmer circuit using a 10k potentiometer, attiny85, and a mosfet; dimming the lights with a PWM signal.

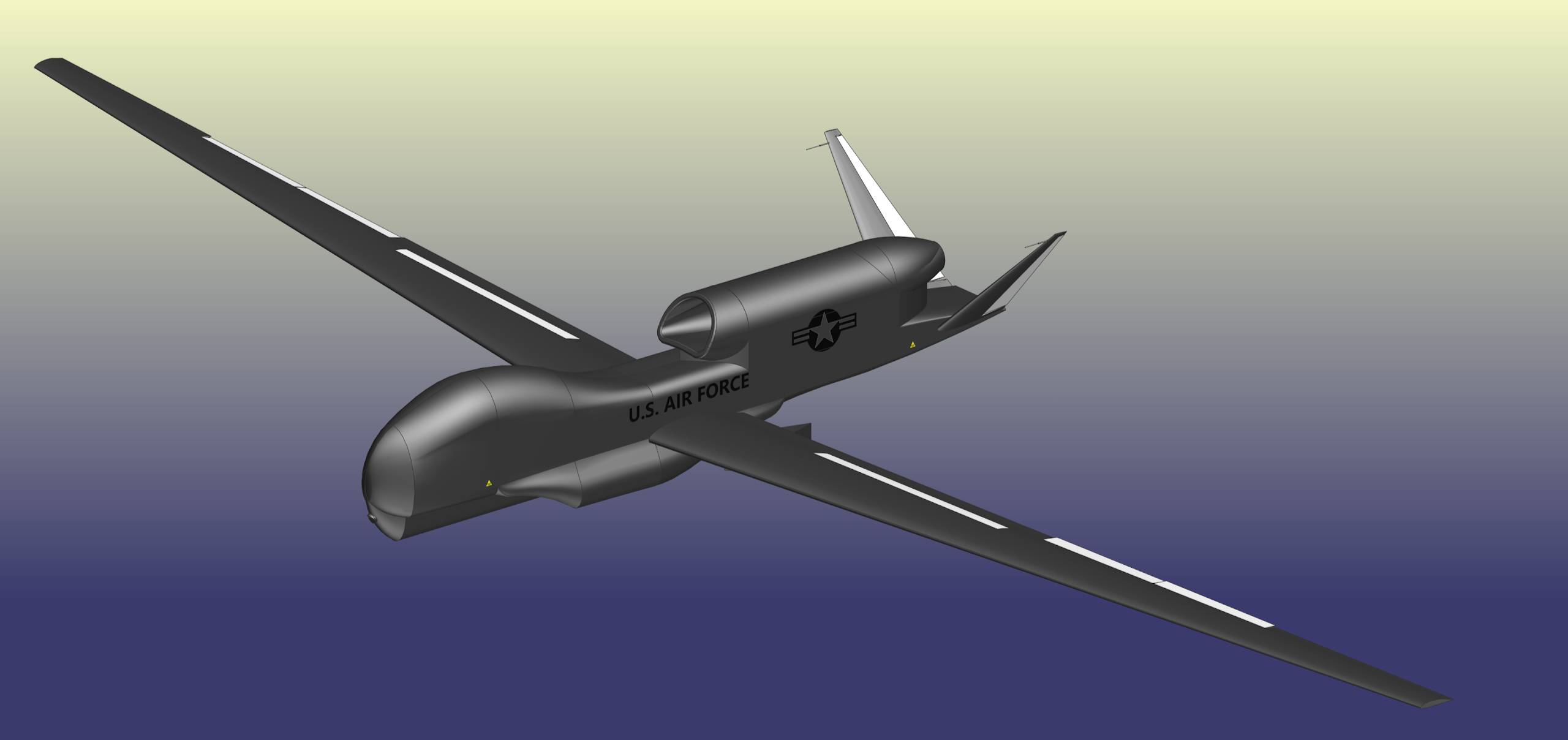

A Northrop Grumman RQ-4 Global Hawk; my final project in CAD freshman year of college. I modeled this based on open source intelligence using Siemen's NX.

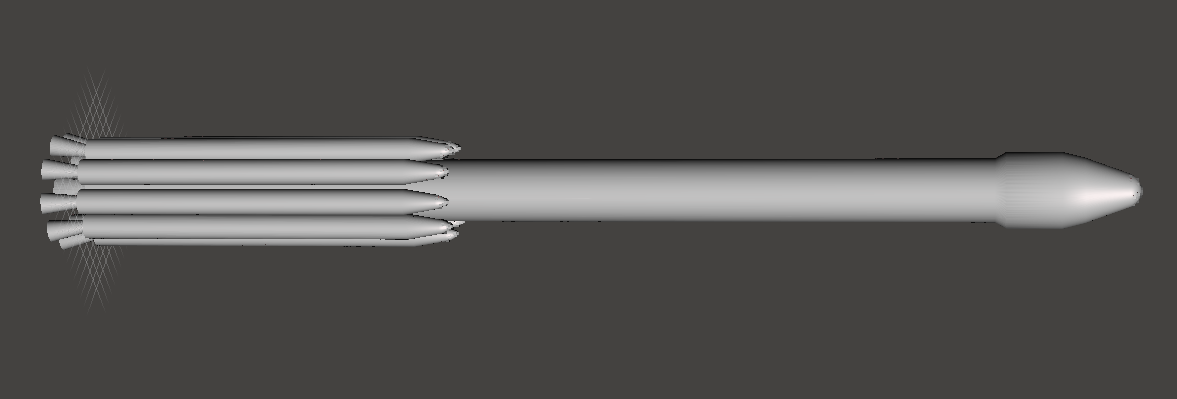

A Delta II rocket; another freshman year CAD project.

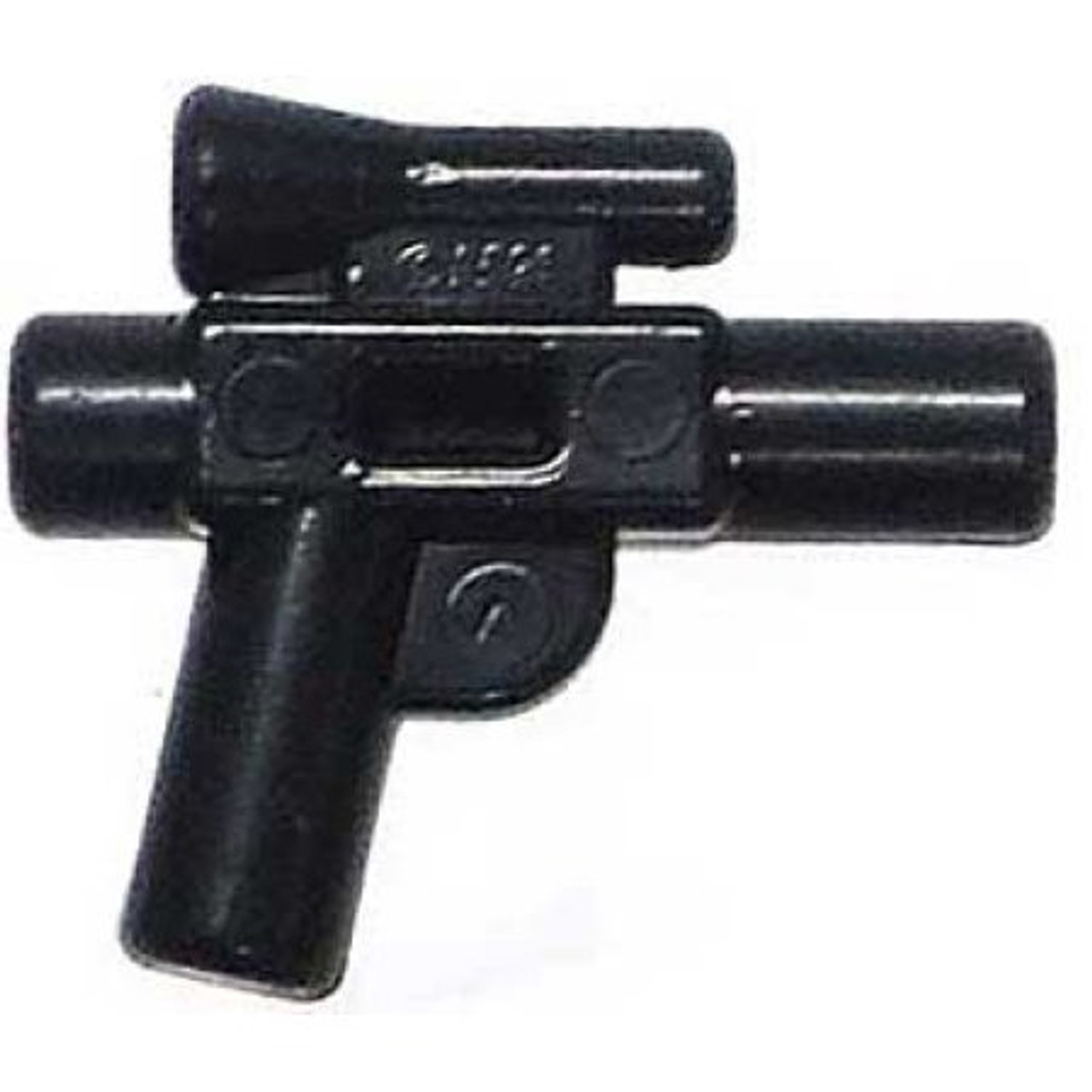

An old school lego blaster, inspired by the old lego star wars and scaled up for my old halloween costume.

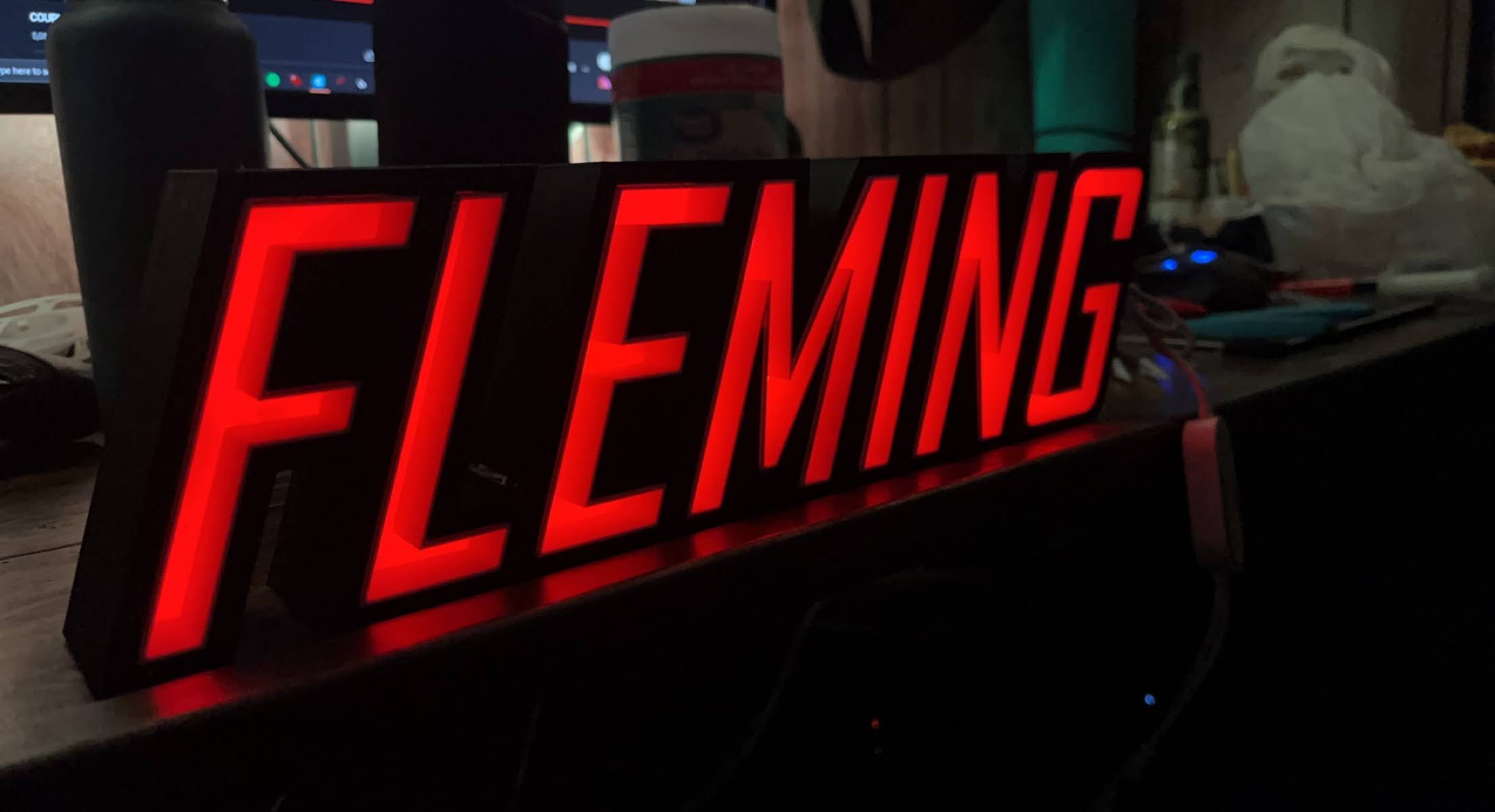

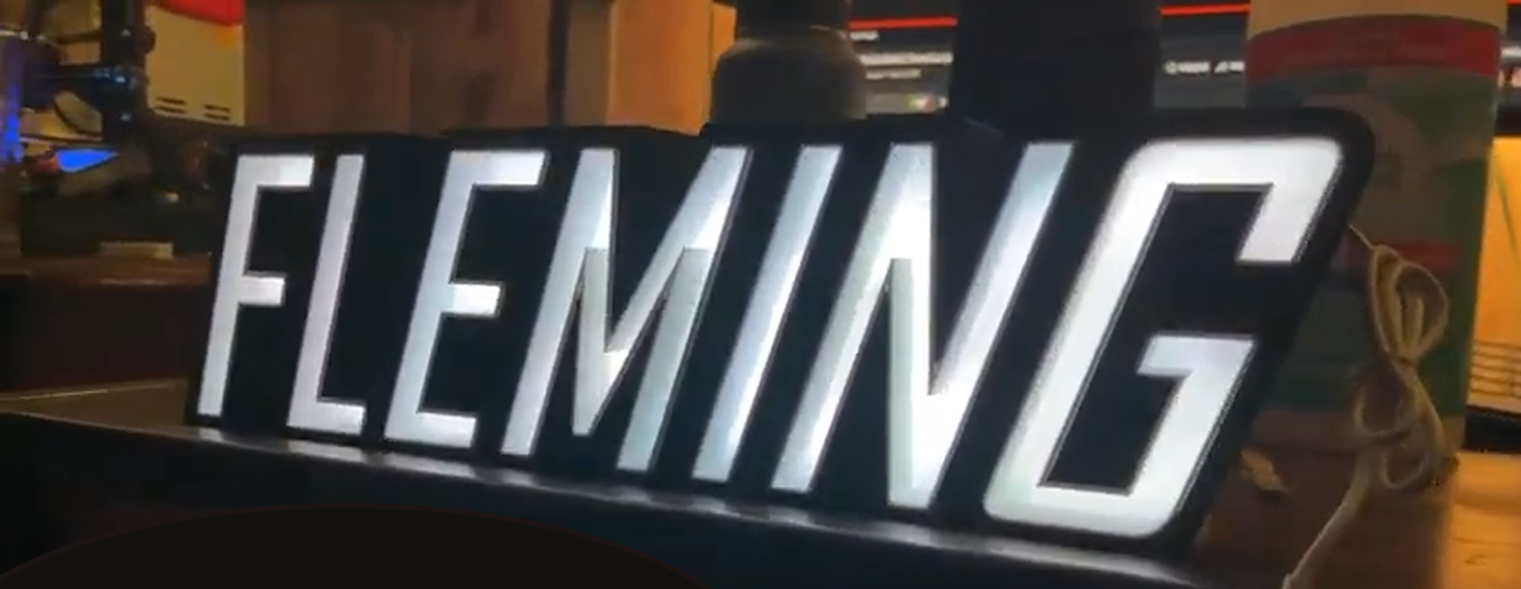

3D printed LED signs. Designed in Fusion360. The backside (black) houses an LED strip, and the frontside (white) slides into a frition fit. The Fleming sign was a gift to my girlfriend's siblings (their last name). The KG sign was a gift to my older brother. It is based off of his business's logo (on the right).

A sleeve for the board game Mancala. I made this because the cardboard box mine came in was unnecessarily large. This fits the one sold at Walmart.

A clamp for my buddy Wyatt's old boat.
